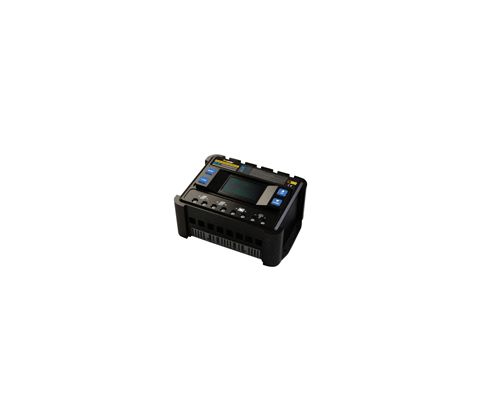

ENS 12/24V 30A

3,284.40 TL
10 adet
+

Teknik Özellikler

Model

ENS12/24-20D

ENS12/24-30D

ENS12/24-40D

ENS12/24-50D

ENS12/24-60D

Normal voltage

12/24V, automatic recognition

Nominal battery charge current

20A

30A

40A

50A

60A

Max. PV input power

300W@12V

600W@24V

450W@12V

900W@24V

600W@12V

1200W@24V

750W@12V

1500W@24V

900W@12V

1800W@24V

Max.solar input voltage Voc

<30V/48V

Min.solar input voltage Vmp

>16V/32V

Power conversion efficiency

Max. 90%

Standby power consumption

<15mA

<15mA

<20mA

<20mA

<20mA

Length≤1m charge loop drop

<0.25V



Length≤1m discharge loop drop

<0.05V



Temperature compensation

-3 mv/cell *K

LCD screen display

Battery voltage, PV charge current, Load discharge current, total PV charge Ah, total PV discharge Ah, the setting of constant voltage charging, the setting of low voltage disconnect, the setting of low voltage reconnect

Buttons

Menu, Load( on/off), Up, Down

Dimensions

172*126.3*73mm(L*W*H)

Weight

0.4kg

0.42kg

0.45kg

0.5kg

0.55kg

Ambient temperature range

-40 to +50℃

Case protection

IP22

Float charge

13.8V/27.6V

Constant voltage charge

14.6V( 14~15V settable )29.2V (28~30V settable)

Low disconnect voltage

11V( 10.4~11.4V settable)/ 22V( 20.8~22.8V settable)

Low reconnect voltage

12.8V( 12.2~13.2V settable)/ 25.6V( 24.4~26.4V settable)

Grounding

Positive grounding

Battery type

GEL,AGM, Solar battery etc.
