| Specifications | Range | Best Accuracy |

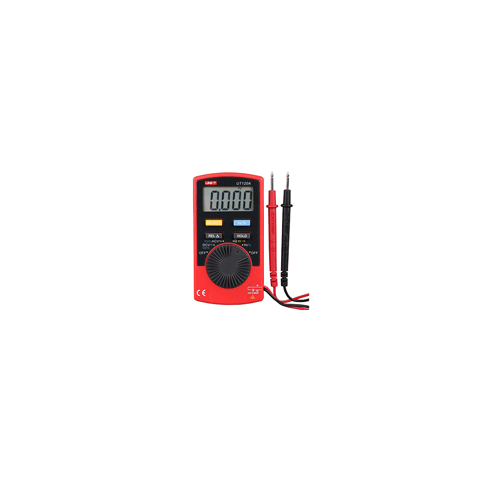

| Model | UT120A | |
| DC Voltage (V) | 4V/40V/400V/600V | ±(0.8%+3) |
| AC Voltage (V) | 4V/40V/400V/600V | ±(1.2%+3) |
| Resistance (Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(1%+2) |
| Frequency (Hz) | 99.99Hz~99.99KHz | ±(0.5%+3) |
| Features | ||
| Display Count | 4000 | |
| Auto Range | √ | |
| Duty Cycle | 0.1%~99.9% | √ |
| Diode | √ | |
| Auto Power Off | Around 30 Minutes | √ |
| Continuity Buzzer | √ | |
| Low Battery Indication | ≤2.4V | √ |
| Data Hold | √ | |
| Relative Mode | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristic | ||
| Power | 3V Battery(CR2032) | |
| LCD Size | 43mm X 22mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 76g | |
| Product Size | 110mm X 58.2mm X 10.8mm | |
| Standard Accessories | Battery,Carrying Case | |
| Standard Individual Packing | Blister, English Manual | |
| Standard Quantity Per Carton | 90 PCs | |
| Standard Carton Measurement | 528mm X 323mm X 400mm (0.068 CBM Per Export Carton) | |
| Standard Carton Gross Weight | 13.5 Kg | |
