| Specifications | ||

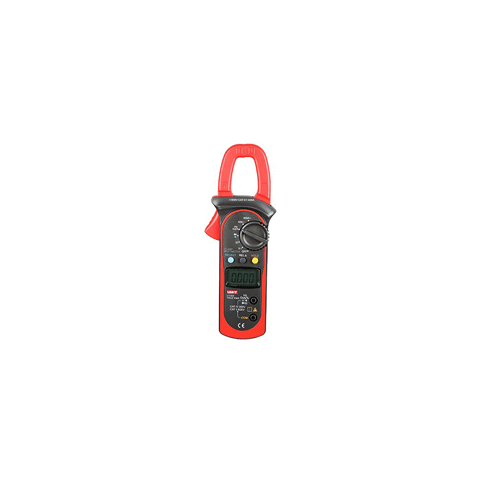

| Model | UT204 | |
| AC Current (A) | 40A/400A | ±(2.5%+5) |
| DC Current (A) | 40A/400A | ±(2%+3) |
| AC Voltage (V) | 4V/40V/400V/600V | ±(1%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/600V | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) |
| Frequency (Hz) | 10Hz ~ 10MHz | ±(0.1%+3) |
| Features | ||
| Display Count | 3999 | |
| Auto Range | √ | |
| Jaw Capacity | 28mm | |
| True RMS | √ | |
| Duty Cycle | 0.1%~99.9% | √ |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Data Hold | √ | |
| Relative Mode | √ | |
| Setup | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 35.6mm x18mm | |
| Product Color | Red and grey | |
| Product Net Weight | 260g | |
| Product Size | 208mm X 76mm X30mm | |
| Standard Accessories | Battery, Test Lead, Carrying Bag | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 48pcs | |
|
Standard Carton Measurement |
503×485×295mm (0.072 CBM Per Standard Carton) |
|
|
Standard Carton Gross Weight |
58kg | |
