| Specifications | ||

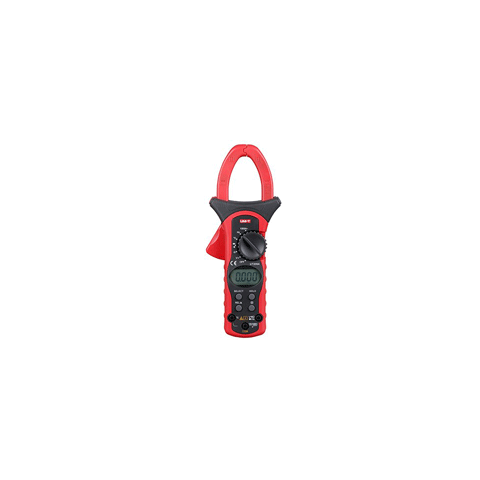

| Model | UT206A | |
| AC Current (A) | 400A/1000A | ±(1.5%+5) |
| AC Voltage (V) | 4V/40V/400V/600V | ±(1.2%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/600V | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+3) |
| Temperature (°C) | -40 °C～1000°C | ±(2%+8) |
| Features | ||
| Display Count | 4000 | |
| Auto Range | √ | |
| Jaw Capacity | 40mm | |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Relative Mode | √ | |
| LCD Backlight | √ | |
| Full Icon Display | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 37mm X 18mm | |
| Product Color | Red and grey | |
| Product Net Weight | 350g | |
| Product Size | 236mm X 97mm X40mm | |
| Standard Accessories |
Battery, Test Lead, Carrying Bag, Point Contact Temperature Probe |
|
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 20pcs | |
|
Standard Carton Measurement |
525×355×380mm (0.071CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 15.7kg | |
