| Specifications | ||

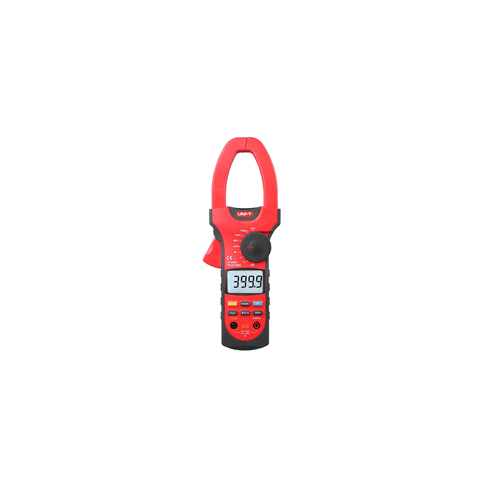

| Model | UT209A | |
| AC Current (A) | 40A/400A/1000A | ±(2%+8) |
| DC Current (A) | 40A/400A/1000A | ±(1.5%+8) |
| AC Voltage (V) | 400mV/4V/40V/400V/750V | ±(1.2%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) |
| Capacitance (F) | 4nF/40nF/400nF/4μF/40μF/100μF | |
| Frequency (Hz) | 10Hz/100Hz/1kHz/10kHz/1MHz/10MHz | ±(0.1%+3) |
| Temperature (°C) | -40 °C ～ 1000°C | |
