Specifications | Range | Best Accuracy |

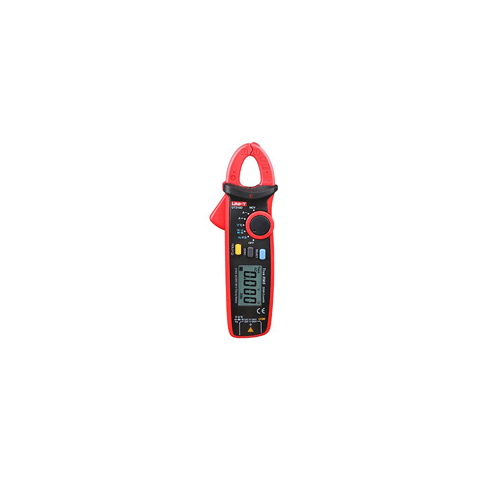

Model | UT210D | |
AC Current (A) | 20A/200A | ±(2.5%+8) |
DC Current (A) | 20A/200A | ±(2%+3) |
AC Voltage (V) | 2V/20V/200V/600V | ±(1%+3) |
DC Voltage (V) | 200mV/2V/20V/200V/600V | ±(0.7%+3) |
Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(1%+2) |
Frequency | 10Hz/100Hz/1kHz/10kHz/60kHz | ±(0.1%+4) |
Capacitance (F) | 2nF/20nF/200nF/2μF /20μF/200μF/2mF/20mF |
±(4%+5) |
Temperature (℃) | -40~1000℃ | ±(1%+3) |
Temperature (℉) | -40~1832℉ | ±(1.5%+5) |
Features | ||
Display Count | 2000 | |
Auto Range | √ | |
Jaw Capacity | 17mm | |
True RMS | √ | |
Diode | Around 3.0V | √ |
NCV | √ | |
Auto Power Off | Around 15 minutes | √ |
Continuity Buzzer | √ | |
Low Battery Indication | ≤2.5V | √ |
Data Hold | √ | |
Zero Mode | √ | |
MAX/MIN | √ | |
LCD Backlight | √ | |
Input Protection | √ | |
Input Impedance for DCV | ≥10MΩ | √ |
