Specifications |
Range |
Best Accuracy |
|
Model |
? |

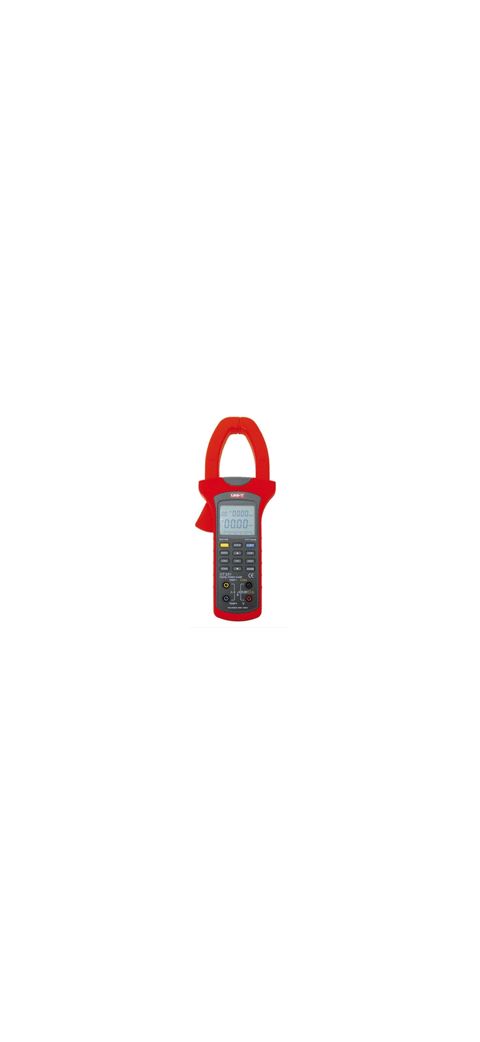

UT231 |
|
AC Current (A) |
40A/100A/400A/1000A |
±(2%+5) |
|
AC Voltage (V) |
15V/100V/300V/600V |
±(1.2%+5) |
|
Frequency (Hz) |
20Hz~500Hz |
? |
|
Temperature (°C) |
-50°C ?1000°C |
±(1%+3) |
|
Temperature (°F) |
-58°F?1832°F |
±(1%+5) |
|
Active Power (W) |
0.01KW-600KW |
±(3%+5) |
|
Apparent Power (VA) |
0.01KVA~600KVA |
±(3%+5) |
|
Reactive Power (VAr) |
0.01KVAr~600KVAr |
±(4%+5) |
|
Power Factor |
0.3~1 |
±(0.02%+2) |
|
Phase Angle (°) |
0° ? 360° |
±1° |
|
Active Energy (Wh) |
1~9999KWh |
±(3%+2) |
|
|
||
