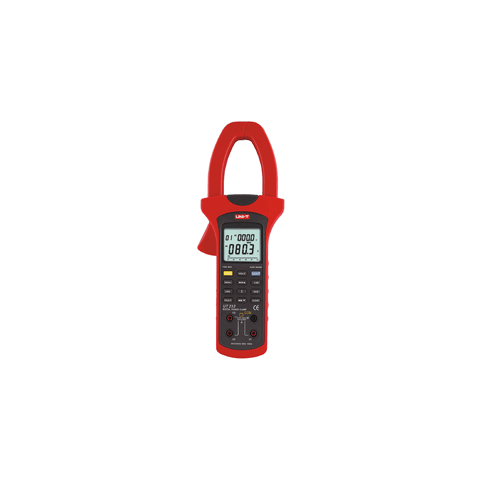

UT 232 Dijital 3 Faz Powermetre
Specifications | Range | Best Accuracy |
Model | UT232 | |
AC Current (A) | 40A/100A/400A/1000A | ±(2%+5) |
AC Voltage (V) | 15V/100V/300V/600V | ±(1.2%+5) |
Frequency (Hz) | 20Hz~500Hz | √ |
Active Power (W) | 0.01KW-600KW | ±(3%+5) |
Apparent Power (VA) | 0.01KVA~600KVA | ±(3%+5) |
Reactive Power (VAr) | 0.01KVAr~600KVAr | ±(4%+5) |
Power Factor | 0.3~1 | ±(0.02%+2) |
Phase Angle (°) | 0° ~ 360° | ±1° |
Active Energy (Wh) | 1~9999KWh | ±(3%+2) |
