Specifications |
Range |
Accuracy |
|
|
Model |
|

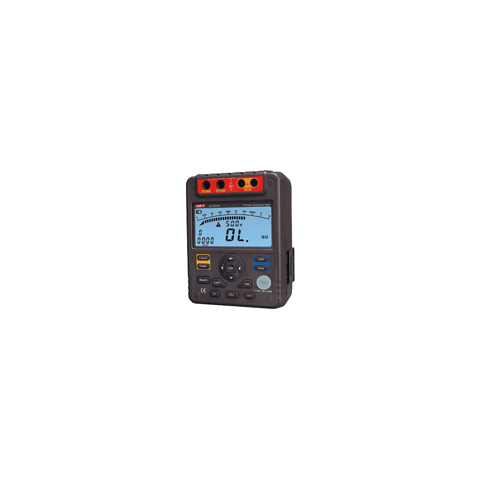

UT513A |
|
|
Insulation Resistance (Ω) |
Test Voltage |
500V/1000V/2500V/5000V |
0%～20% |
|
500V |
0.5MΩ~20GΩ |
±(3%+5) |
|
|
1000V |
1.0MΩ~40GΩ |
±(3%+5) |
|
|
2500V |
2.5MΩ~100GΩ |
±(3%+5) |
|
|
5000V |
5.0MΩ~1000GΩ |
±(3%+5) |
|
|
Short Circuit Current |
|
>3.0mA |
|
|
DC Voltage (V) |
600V |
±(2%+3) |
|
|
AC Voltage (V) |
600V |
±(2%+3) |
|
