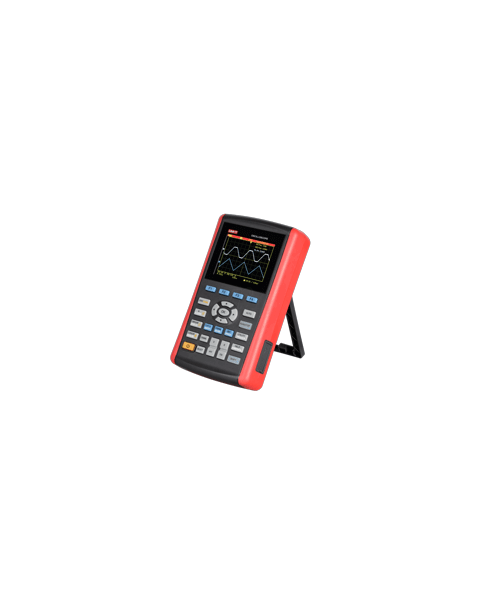

Model: UNI-T UTD1025CL
- Color: Red + Grey
- 3.5' 64K color TFT LCD
- Channel number: 1
- Bandwidth: 25MHz
- Rise Time: 14ns
- Sample Rate: 200MS/s
- Vertical Sensitivity: 5mV/div-20V/div
- Memory Depth: 12kpts
- Scanning Speed: 10ns/div-50s/div
- Trigger Type: Edge,Pulse,Video,Alternate
- Storage: Bitmap,Waveform,Set
- Interface: Mini USB
- Multimeter:
- DC Voltage: 400mV/4V/40V/400V ±(1%+5)
- AC Voltage: 400mV/4V/40V/400V ±(1.2%+5)
- DC Current: 400uA/4000uA ±(1.2%+5), 40mA/4000mA ±(1%+5), 10A ±(1.5%+5)
- AC Current: 400uA/4000uA ±(2%+5), 40mA/4000mA ±(1.5%+5), 10A ±(5%+5)
- Resistance: 400 ohm/4K ohm/40K ohm/400K ohm/4M ohm ±(1.2%+5), 40.00M ohm ±(1.5%+5)
- Capacitance: 51.2nF/512nF/5.12uF/51.2uF/100uF ±(3%+5)
- Built-in rechargeable 7.4V 3600mAh lithium battery
- Working time: not less than 8 hours
- Accessories:
- 1 x 100~240V 50/60HZ 1.5A power adapter (325cm cable)
- 2 x Test Leads (111cm)
- 2 x Sensors (1:1 / 10:1)
- 1 x 10A splitter
- 1 x Carrying pouch
- 1 x USB connecting cable (150cm)
- 1 x Software CD
- 1 x English Manual
