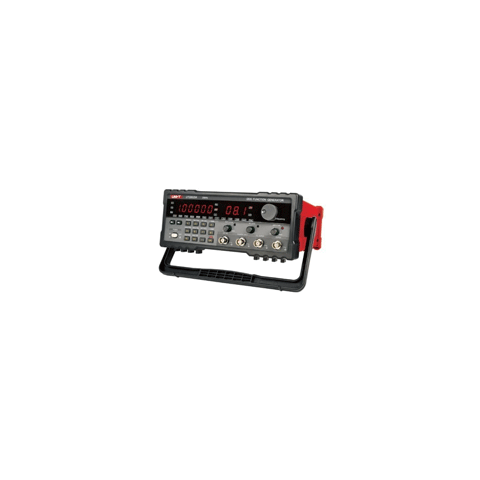

UTG 9020A

16,422.00 TL
10 adet
+

Özellikler



Features

Range

Model

UTG9020A

Waveforms

Sine, Square, Triangle, Ramp up, Ramp down, Exponential rise, Exponentional fall etc.

Amplitude

Range (no load)

from 1mVpp to 20Vpp

Accuracy

±5%

Resolultion

0.1mV

Frequency

Range of Sine

from 0.1Hz to 20MHz

Range of Square

from 0.1Hz to 5MHz

Range of Other Wave

from 0.1Hz to 1MHz

Accuracy

0.01Hz (≤3.05kHz), 1Hz (>3.05kHz)

Stability

50ppm

Output Impedance

50Ω

Attenuator

20dB + 40dB

DC Offset

from -10V to +10V

Display

Frequency: 6-digits-LED, Amplitude: 3-digits-LED

Duty Cycle

from 20% to 80%

Distortion of Sine

<20kHz : -55dBc,20kHz to 1MHz : -50dBc,1MHz to 10MHz : -40dBc,10MHz to 20MHz : -30dBc

Square

Rise/Fall Time

≤20ns

Overshoot

5%

Asymmetry

1%+20ns

Duty Cycle

20% to 80%
